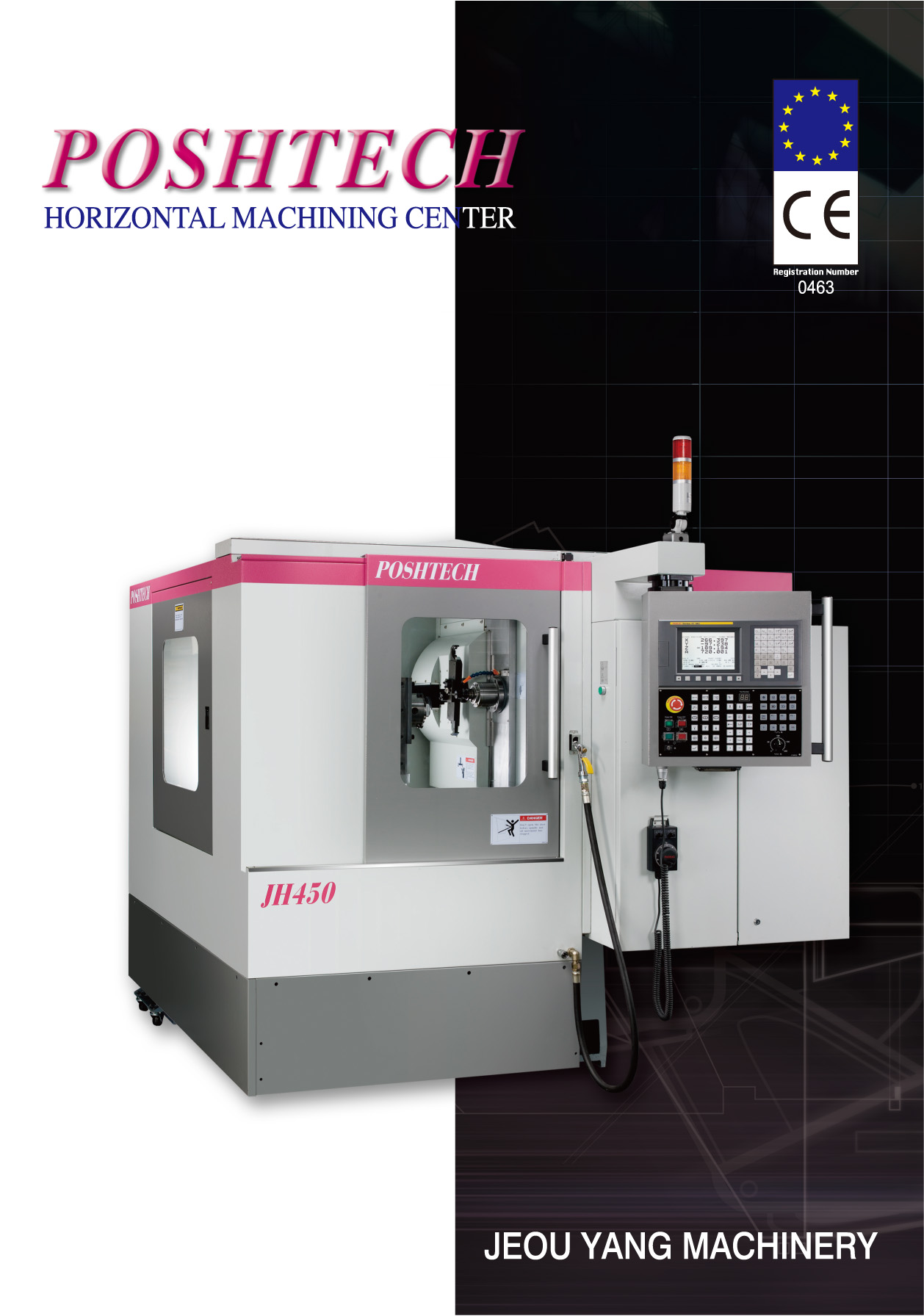

Poshtech  JH450

Model

JH450

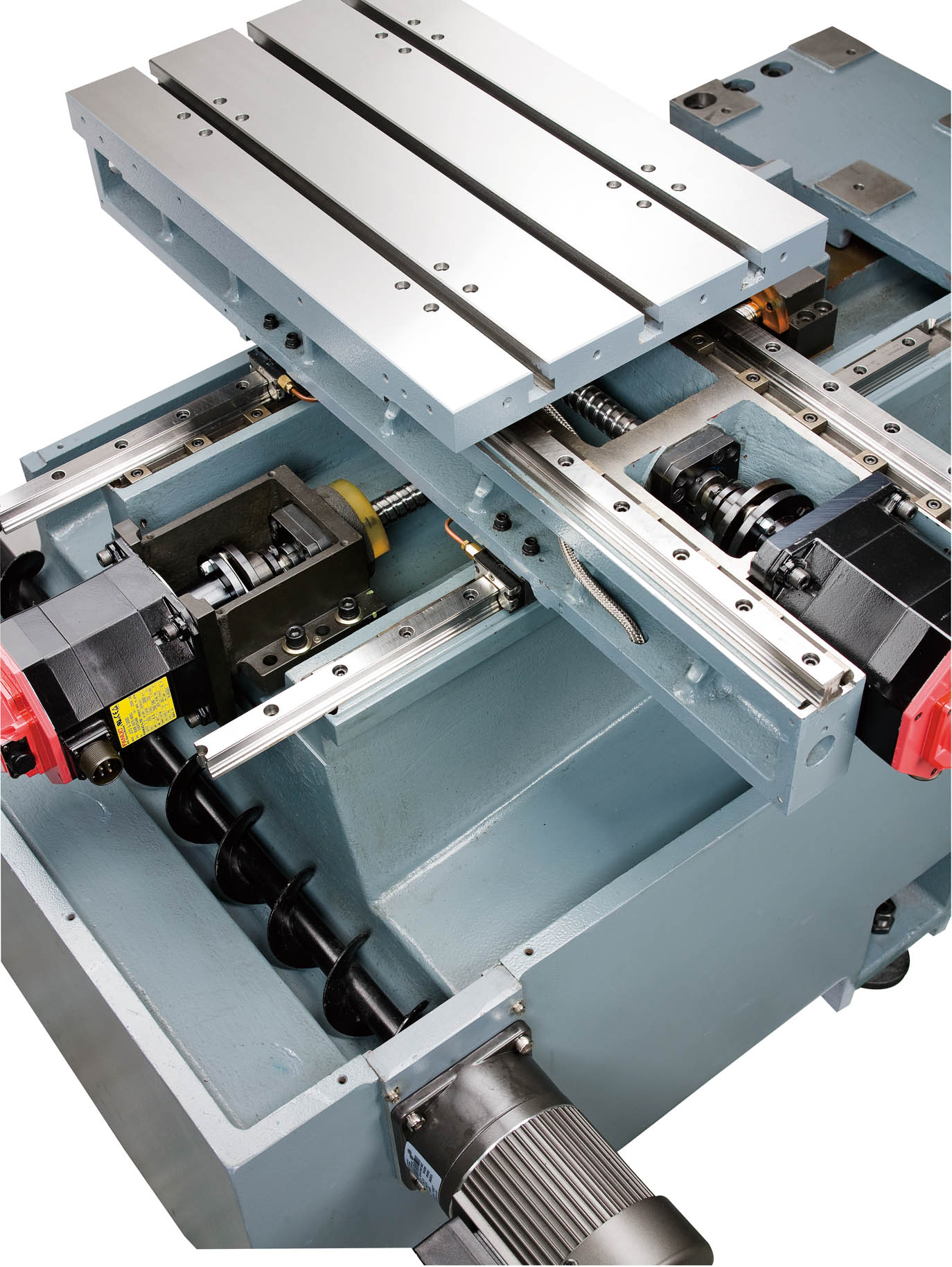

Table

Table Size (X/Y)mm

500x350

T-Slot (size＊number)

14x100x3

Max. Table loading     kg

   150kg

Travel

Longitudinal travel (X) mm

450

Cross travel      (Y) mm

350

Headstock travel  (Z) mm

350

Spindle nose to table surface

100-450

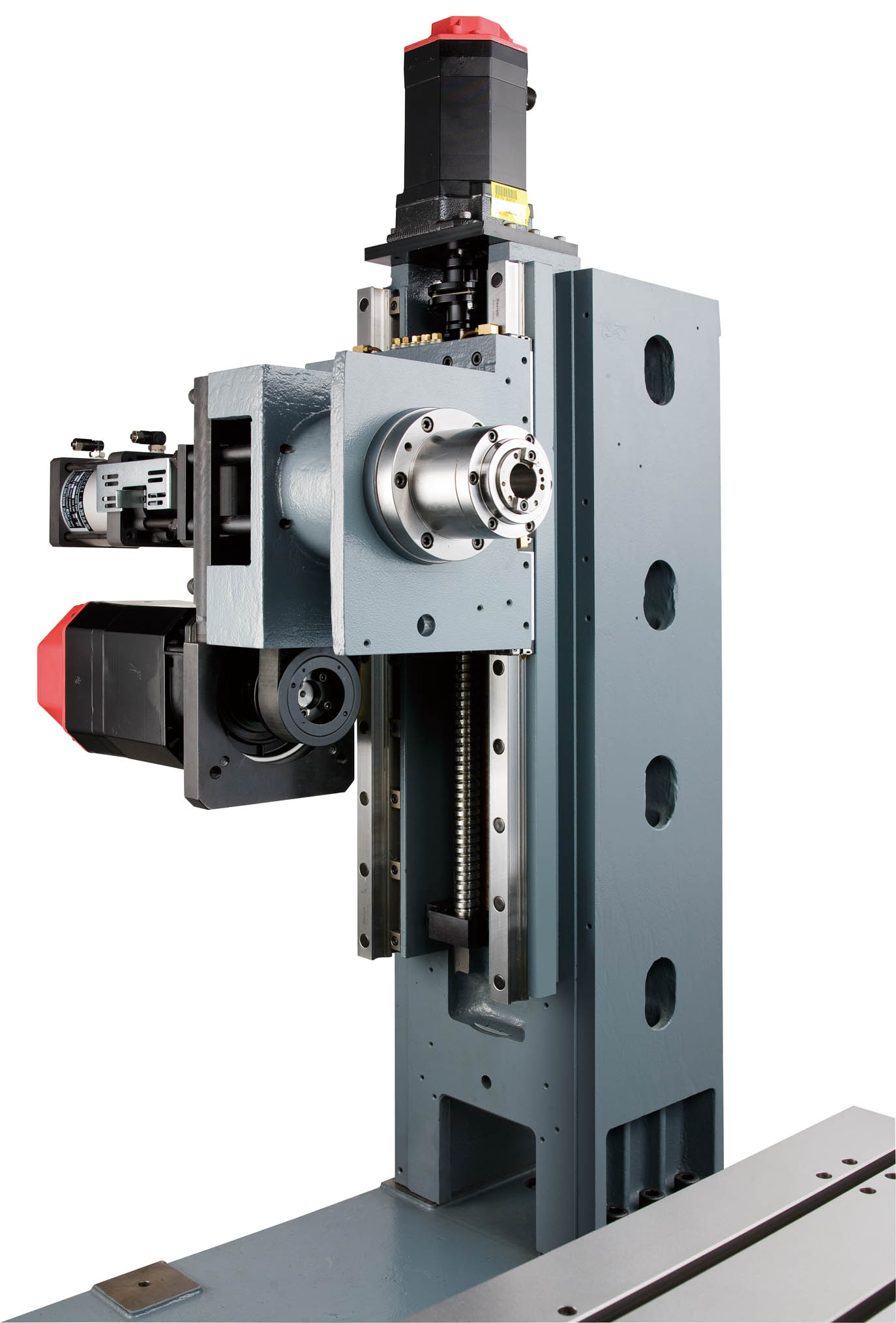

Spindle Center to Column

Spindle

Spindle taper

BT 30

Spindle speed (standard) rpm

12000

Feed

Rapid travel        M/min

24/24/24

Min. input increment   mm

0.001

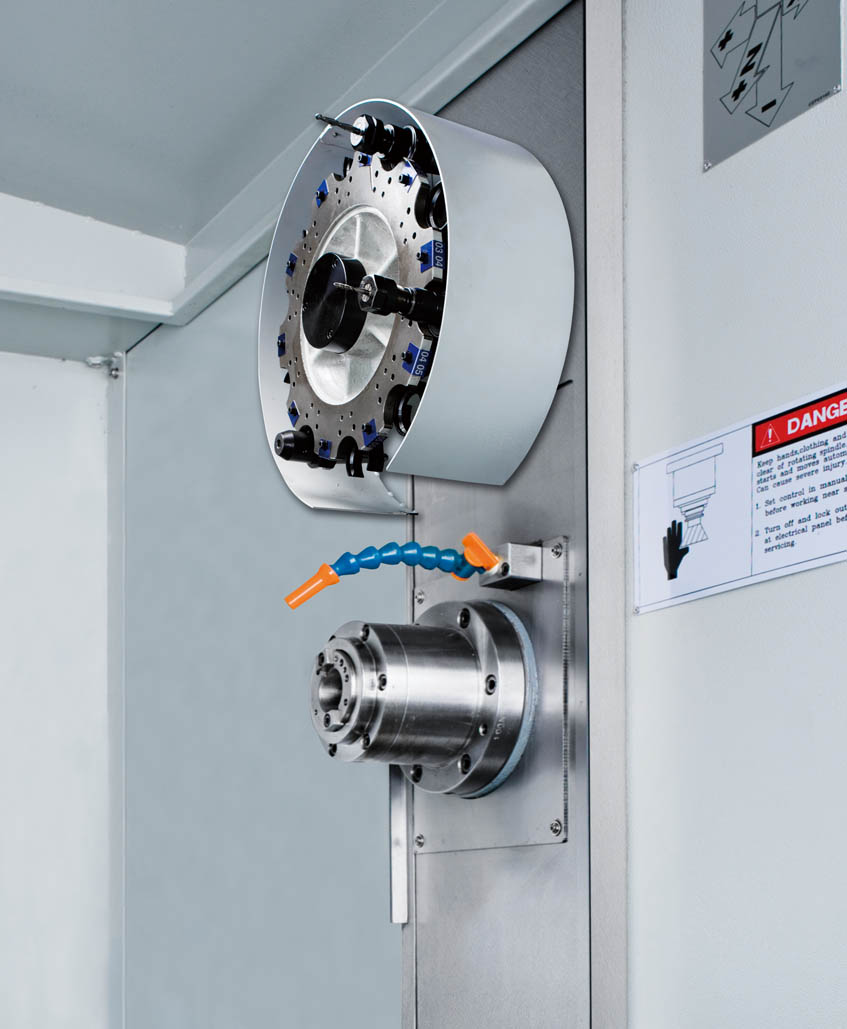

ATC

Tool holder

BT 30

Tool storage capacity   pcs

20

Max. Tool diameter    mm

63

Max. Tool length      mm

150

Max. Tool weight      kg

3

Tool change time

   6

Motor

Spindle motor         Kw

3.7/5.5

X servo motor         Kw

1.5

Y servo motor         Kw

1.5

Z servo motor         Kw

2.0

Machine weight and space

Floor space           mm

1690x2085x2070

Net weight            kg

2100

＊Specification is subject to be changed without notice
